Basic CRUD Operations Using Hasura GraphQL With Distributed SQL on GKE

GraphQL is an MIT-licensed project originally developed at Facebook in 2012 and open-sourced a few years later. It is rapidly increasing in popularity with more than 29 million downloads to date. Why? Think of GraphQL as a query language for APIs and a runtime for fulfilling those queries with your existing data.

GraphQL provides a complete and understandable description of the data in your API and gives clients the power to ask for exactly what they need and nothing more. Plus, it makes it easier to evolve APIs over time. GraphQL is also a robust technology and is being used in production at Facebook, GitHub, Pinterest, and Intuit.

What Is Hasura?

Hasura is one of the leading vendors in the GraphQL ecosystem. They offer an open-source engine that connects to your databases and microservices, and then auto-generates a production-ready GraphQL backend.

What Is YugabyteDB?

YugabyteDB is an open-source, high-performance distributed SQL database built on a scalable and fault-tolerant design inspired by Google Spanner. Yugabyte’s SQL API (YSQL) is PostgreSQL wire compatible.

Why Hasura GraphQL and YugabyteDB?

Writing complex database queries can be hard and time-consuming; a GraphQL engine, like Hasura, can help you quickly alleviate these challenges and exploit the benefits of the GraphQL API against a database.

Hasura does the heavy lifting under the covers and automatically generates queries to fetch the data. When combined with YugabyteDB, you inherit all the benefits of a PostgreSQL-compatible, distributed SQL system, with features like high performance, extreme resilience to failures, and geodata distribution. The result is a fast and highly available backend that makes it easy to develop applications and microservices.

In this blog post, we are going to show you how to get started with Hasura and YugabyteDB running on Google Kubernetes Engine (GKE) and conclude by showing you how to perform some basic CRUD operations. Look for more in-depth blog posts concerning Hasura and YugabyteDB in the coming weeks where we will cover sophisticated CRUD operations and benchmarking results.

Prerequisites

Here is the environment required for this tutorial:

• YugabyteDB 2.1.0 installed on GKE using Helm.
• A Google Cloud Platform account.

Set Up a Kubernetes Cluster on Google Cloud Platform

To deploy YugabyteDB on the Google Cloud Platform (GCP), we first have to set up a cluster. To create the cluster in Google Kubernetes Engine (GKE), navigate to Kubernetes Engine> Clusters > Create Cluster.

For the configuration of the cluster, choose a Standard cluster using the default options.

• Name: yugabytedb-cluster1.
• Zone: us-central1-a.
• Master version: 1.14.10-gke 17 (default).
• Number of nodes: 3.
• Machine type: n1-standard-2 (2 vCPU, 7.5 GB memory).

Next, connect via the Google Cloud Shell and verify that the nodes are running by using the following command:

xxxxxxxxxx

gcloud container clusters list

Installing YugabyteDB on the GKE Cluster Using Helm

In this section, we are going to install YugabyteDB on the cluster. The complete steps are documented here.

The first thing to do is to upgrade Helm.

xxxxxxxxxx

helm init --upgrade --wait

Next, let’s create a service account.

xxxxxxxxxx

kubectl create -f https://raw.githubusercontent.com/yugabyte/charts/master/stable/yugabyte/yugabyte-rbac.yaml

The output should look like this:

xxxxxxxxxx

serviceaccount/yugabyte-helm created

clusterrolebinding.rbac.authorization.k8s.io/yugabyte-helm created

Initialize Helm:

xxxxxxxxxx

helm init --service-account yugabyte-helm --upgrade --wait

The output should look like this:

xxxxxxxxxx

$HELM_HOME has been configured at /home/jimmy/.helm.

Tiller (the Helm server-side component) has been upgraded to the current version.

Create a namespace. In this case, we’ll call it yb-demo.

xxxxxxxxxx

kubectl create namespace yb-demo

Expected output:

xxxxxxxxxx

namespace/yb-demo created

Next, add the yugabytedb charts repo.

xxxxxxxxxx

helm repo add yugabytedb https://charts.yugabyte.com

Output:

xxxxxxxxxx

"yugabytedb" has been added to your repositories

Fetch updates from the repository.

xxxxxxxxxx

helm repo update

Output:

xxxxxxxxxx

Hang tight while we grab the latest from your chart repositories...

...Skip local chart repository

...Successfully got an update from the "yugabytedb" chart repository

...Successfully got an update from the "stable" chart repository

Update Complete.

We are now ready to install YugabyteDB. In the command below we’ll be specifying values for a resource-constrained environment.

xxxxxxxxxx

helm install yugabytedb/yugabyte --namespace yb-demo --name yb-demo --set resource.master.requests.cpu=0.1,resource.master.requests.memory=0.2Gi,resource.tserver.requests.cpu=0.1,resource.tserver.requests.memory=0.2Gi --wait

To check the status of the cluster, execute the below command:

xxxxxxxxxx

helm status yb-demo

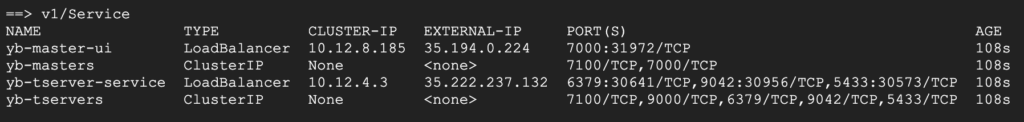

Take a look at the v1/Service section:

Note, the external-IP for LoadBalancer that we are going to use to establish a connection between YugabyteDB and Hasura. From the screenshot above, we can see that the IP is 35.222.237.132 and the YSQL port is 5433.

Creating the Sample Database

The next step is to download a sample schema and data. You can find a variety of sample databases that are compatible with YugabyteDB in our Docs. For the purposes of this tutorial, we are going to use the northwind sample database.

The northwind database contains the sales data for a fictitious company called, “Northwind Traders,” which imports and exports specialty foods from around the world. The northwind database is an excellent tutorial schema for a small-business ERP, with customers, orders, inventory, purchasing, suppliers, shipping, employees, and single-entry accounting.

Connect to the yb-tserver-pod by running the following command:

xxxxxxxxxx

kubectl exec -n yb-demo -it yb-tserver-0 /bin/bash

To download the schema and data files, run the following commands:

xxxxxxxxxx

$ wget https://raw.githubusercontent.com/yugabyte/yugabyte-db/master/sample/northwind_ddl.sql

$ wget https://raw.githubusercontent.com/yugabyte/yugabyte-db/master/sample/northwind_data.sql

Note: If the Google Cloud Shell tells you that the wget command does not exist, you can execute:

xxxxxxxxxx

$ yum install wget -y

To connect to the YSQL service, exit out of the pod shell and run the following command:

xxxxxxxxxx

$ exit

$ kubectl exec -n yb-demo -it yb-tserver-0 /home/yugabyte/bin/ysqlsh -- -h yb-tserver-0.yb-tservers.yb-demo

Create a database and connect to it using the following commands:

xxxxxxxxxx

northwind=# CREATE DATABASE northwind;

northwind=# \c northwind;

Create the database objects and load them up with data using the following commands:

xxxxxxxxxx

northwind=# \i 'northwind_ddl.sql';

northwind=# \i 'northwind_data.sql';

Verify that the tables are created by running the following command:

xxxxxxxxxx

northwind-# \d

                 List of relations

 Schema |          Name          | Type  |  Owner

--------+------------------------+-------+----------

 public | categories             | table | yugabyte

 public | customer_customer_demo | table | yugabyte

 public | customer_demographics  | table | yugabyte

 public | customers              | table | yugabyte

 public | employee_territories   | table | yugabyte

 public | employees              | table | yugabyte

 public | order_details          | table | yugabyte

 public | orders                 | table | yugabyte

 public | products               | table | yugabyte

 public | region                 | table | yugabyte

 public | shippers               | table | yugabyte

 public | suppliers              | table | yugabyte

 public | territories            | table | yugabyte

 public | us_states              | table | yugabyte

(14 rows)

Verify that we have data by issuing a few simple SELECTs:

xxxxxxxxxx

northwind=# SELECT count(*) FROM products;

 count

-------

    77

(1 row)

northwind=# SELECT count(*) FROM customers;

 count

-------

    91

(1 row)

northwind=# SELECT count(*) FROM orders;

 count

-------

   830

(1 row)

Setting Up Hasura to Use YugabyteDB

Get the Hasura Kubernetes deployment and service files by executing the commands below.

xxxxxxxxxx

northwind=# exit

$ wget https://raw.githubusercontent.com/hasura/graphql-engine/master/install-manifests/kubernetes/deployment.yaml

$ wget https://raw.githubusercontent.com/hasura/graphql-engine/master/install-manifests/kubernetes/svc.yaml

Modify the database URL in deployment.yaml file. This file can be edited using a text editor like vi. For the purposes of this tutorial, the modification should look like this:

After saving the file, use kubectl to create a Hasura deployment using the commands below:

xxxxxxxxxx

$ kubectl create -f deployment.yaml

deployment.apps/hasura created

$ kubectl create -f svc.yaml

service/hasura created

To find the external IP and open the Hasura console execute the command below:

xxxxxxxxxx

$ kubectl get svc

NAME         TYPE           CLUSTER-IP    EXTERNAL-IP     PORT(S)        AGE

hasura       LoadBalancer   10.12.1.232   35.226.238.14   80:31029/TCP   88s

kubernetes   ClusterIP      10.12.0.1                     443/TCP        4h41m

Now, use http://<EXTERNAL-IP>/console to access the Hasura console. In this case, it is 35.226.238.14. You should see the Hasura console as shown below:

We are now ready to perform basic CRUD operations on the database using Hasura!

Querying Data Using Hasura

Click on Data in top nav, click on Track All for tables, views, and foreign key relations. Refresh your browser, and you should now see the 14 northwind tables in the Explorer tree on the left-hand side when you click on GraphQL in the top nav.

Next, select the table and the list of columns that you want to query. Hasura will automatically generate the query. In this example, we’ll use the products table.

Now, click the play button to run the query.

This will return all the entries in the products table. A sample of the output is below:

Query Entries With a where Clause

This time, let’s include a where clause and return the product with the product_id equal to 21. In this case, we’ll click on where > product_id > _eq: and input 21.

Your output should look like this:

Adding a New Entry

Click the ADD NEW MUTATION at the bottom of the explorer tree to find all the mutations available.

In this exercise, let’s add a new product. We can do this by selecting the following items in the explorer tree and adding values for our new product, “Neal’s Greenies.”

Click the play button. We selected to return the product_name and units_in_stock. So, the output after running the insert should look like this:

At this point, we have successfully added a new entry. We can verify this by navigating to the Data tab and issuing a query like the one below:

Updating an Existing Entry

Let’s change the unit_price for “Neal’s Greenies” from 40 to 25. The query and output should like this:

We can verify that the unit price has been changed to 25 by navigating to the Data tab and issuing a query like the one below:

Deleting an Entry

Deleting data is similar to how we constructed queries for the INSERT and UPDATE mutations. In this case, let’s DELETE the “Neal’s Greenies” product from the database by using delete_products in the explorer tree.

The query and output should look like this:

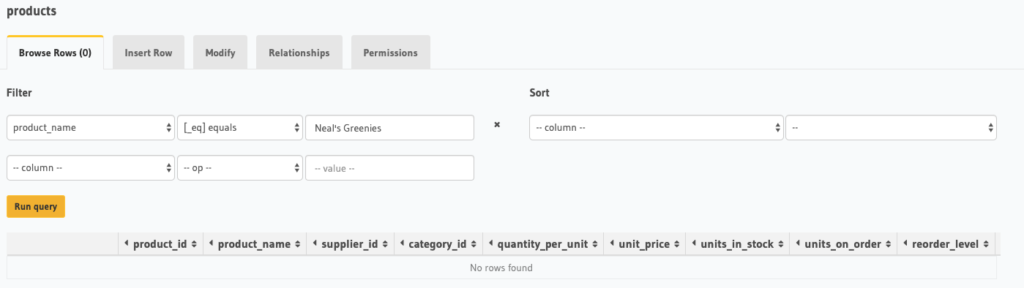

We can verify that “Neal’s Greenies” has been removed from the products table by navigating to the Data tab and issuing a query like the one below. You can see that we get “No rows found.”

That’s it! We’ve seen how easy it is to get YugabyteDB and Hasura up and running on GKE and to perform basic CRUD operations against the database with GraphQL. You are now ready to perform more advanced GraphQL operations against YugabyteDB with help from Hasura. Check out their docs and tutorials on how to get started.
